Demonstration machine

6-axis universal-machining centre

Model:	Keppler HDC 3000 Z
Year of construction
Storage location	Pfullingen
Country of origin	Germany
Delivery time	on short call
Freight basis	Ex works
Additional information	On request

Technical details

X-traverse path (mm)	3.000
Y-traverse path (mm)	1.500
Z-traverse path (mm)	1.400

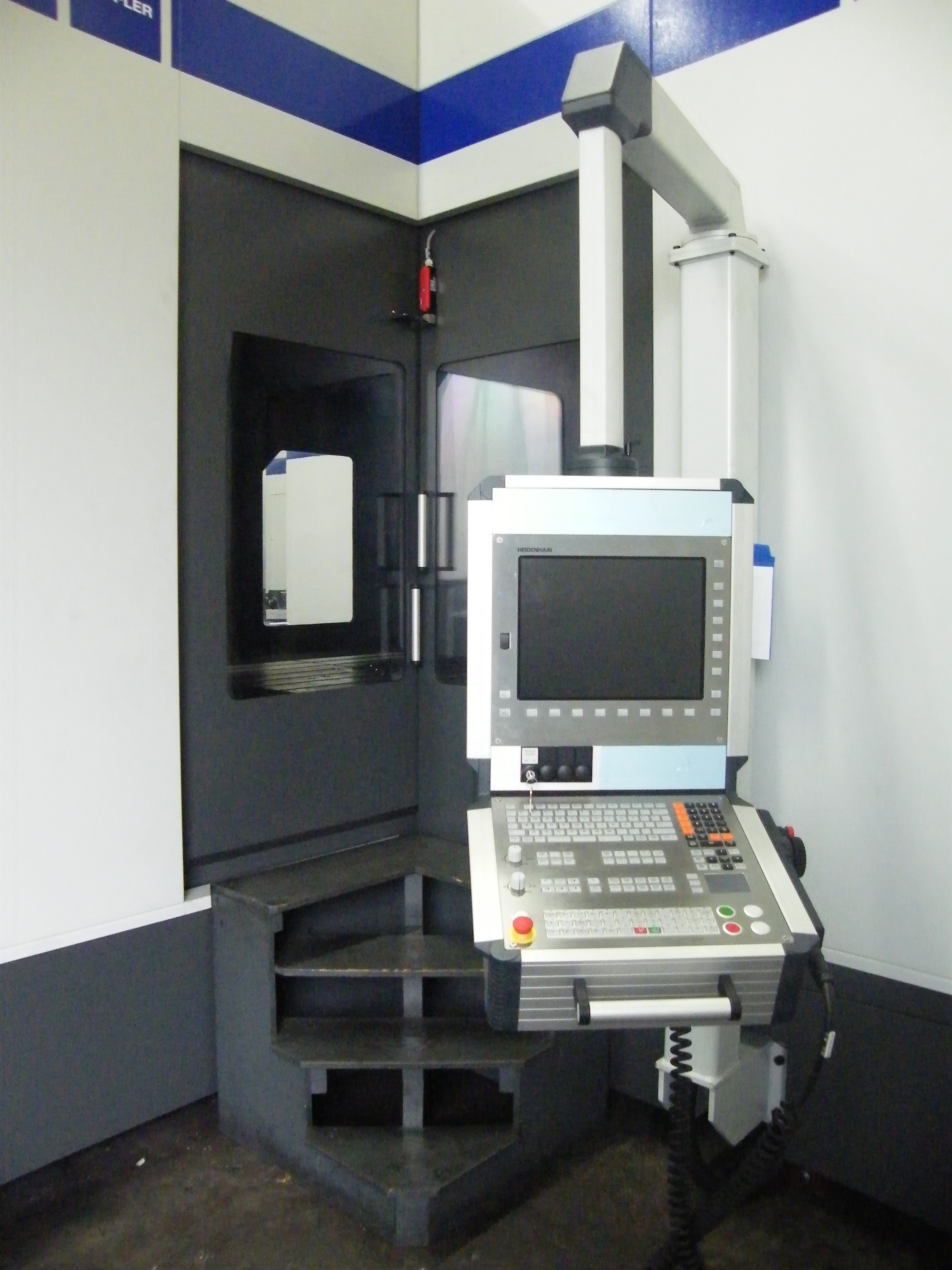

Control	Heidenhain iTNC 530
NC-rotary table (mm)	1.250 x 1.600
Rotational speed milling (rpm)	~ 10.000
Spindle torque (Nm)	220
Slewing range + / -	A-axis 185°
Slewing range + / -	B-axis 200°
Tool holder	SK 50
Tool changer	60 Pockets
Spindle time (hours)	2.126

Equipment

• Full enclosure for optimized crane load
• Chip conveyor
• Coolant supply
• Blower through spindle centre / external blower (air)
• Internal cooling through spindle - Increase to 60 bar for deep hole machining
• Electronical hand operationg module HR 410
• Fixing devices
• Commissioning / Installation (within Germany)
• Machine acceptace

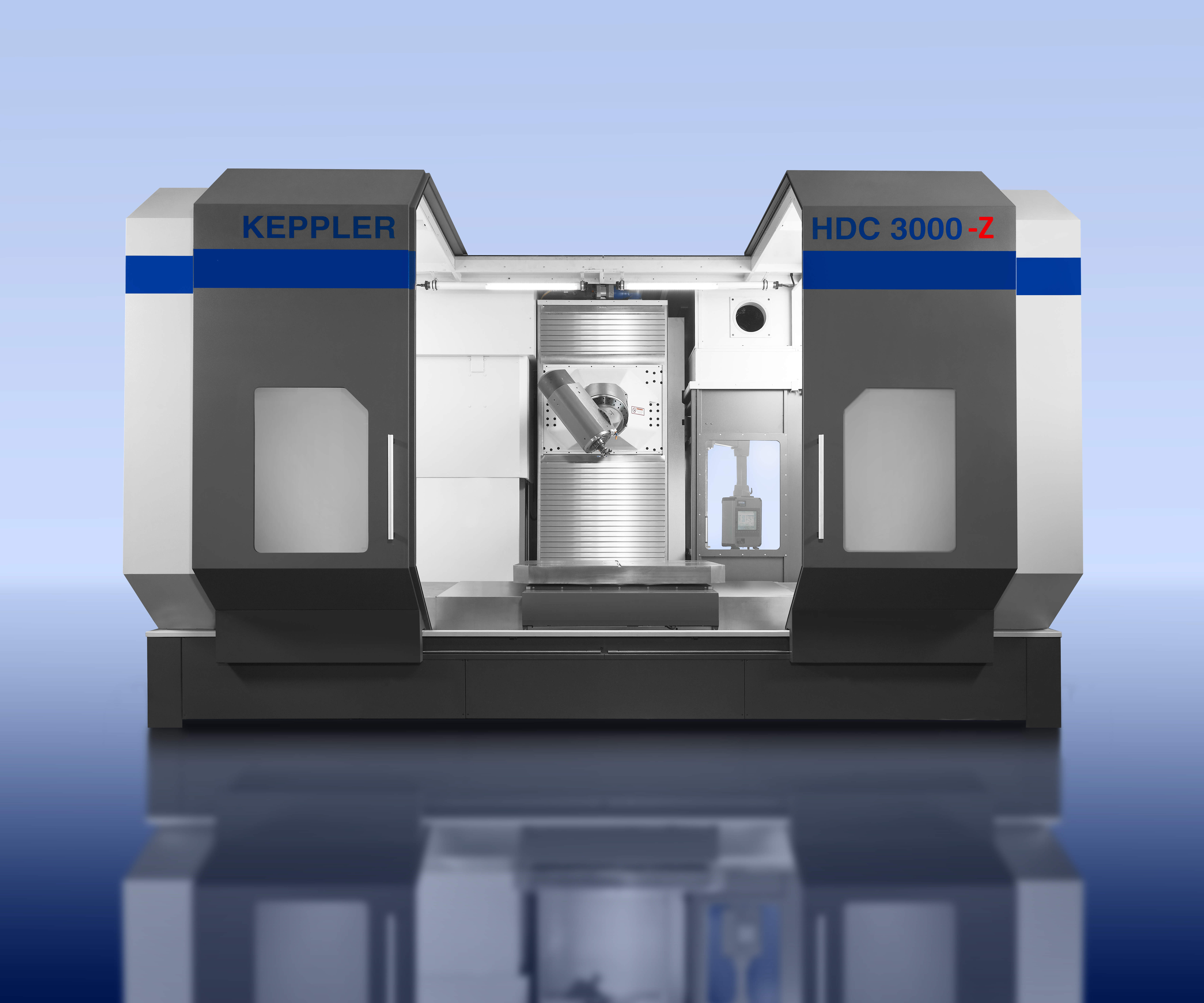

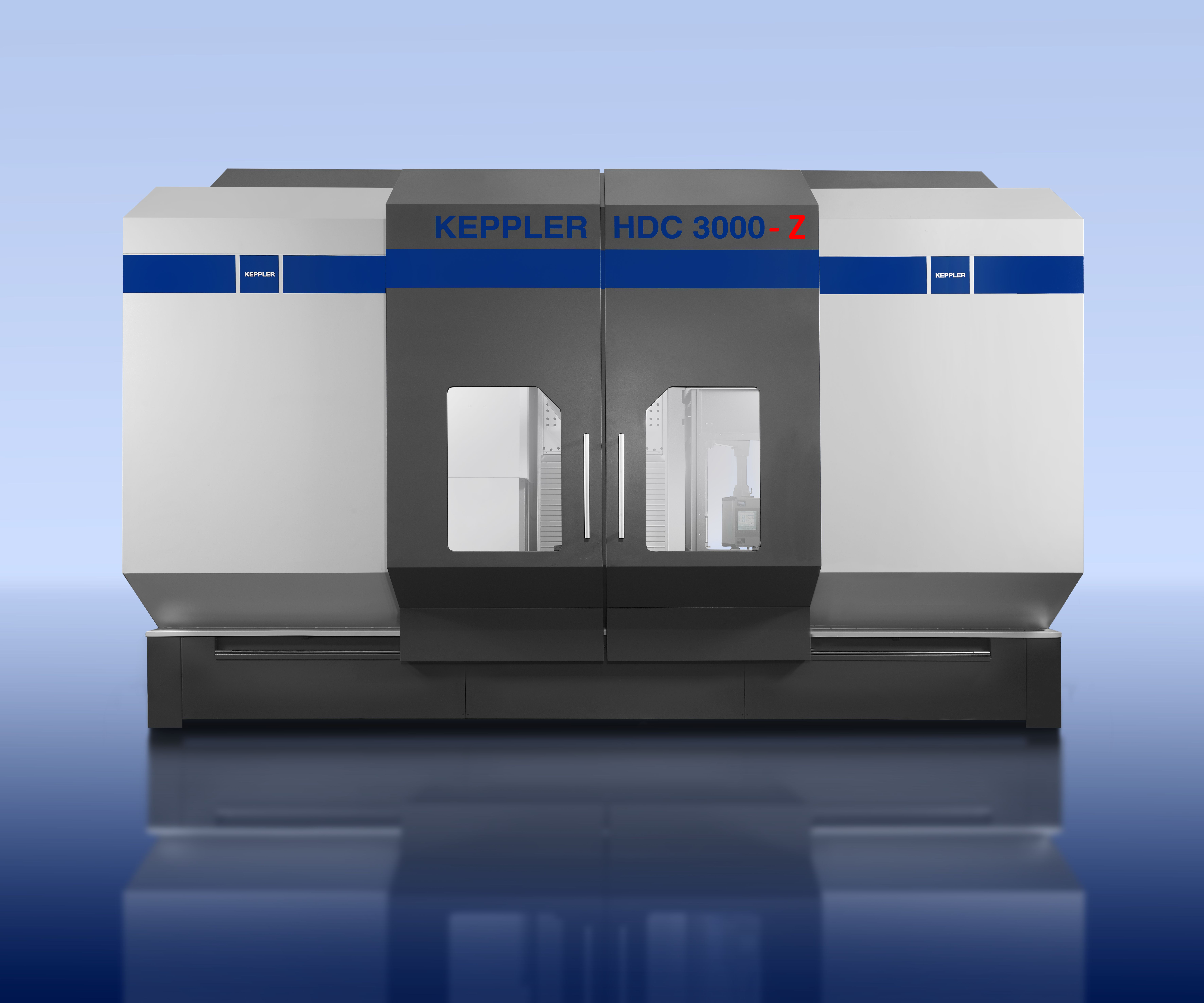

Machine pictures
